Dew Point Monitoring System

Maintaining the atmosphere composition required to achieve high product quality and consistency.

The Dew Point Monitoring System enables manufacturers to comply with CQI-9 and NADCAP requirements with continuous monitoring of furnace atmosphere. The system maintains accurate consistency of the measured dew point level by incorporating design features such as an automated self-cleaning and sensor calibration process, along with temperature control of the sensor and the sampling system. Drifts and changes in dew point that are reported through local monitoring/alarms or remotely through cloud server access can also help to address furnace operational issues quickly and efficiently.

Gas Equipment Expertise

Applying innovation and our expertise to solve our customers’ problems is our core strength

0796-clock
Continuous local and online monitoring

Your furnace dewpoint always available at the furnace or anywhere through a secure cloud-based server

0740-gear
Reliable and low maintenance

Automated self-cleaning and sensor calibration

ap0042-certificate
Enables quality program compliance

Helps manufacturers comply with CQI-9, NADCAP, and other industry or customer specific quality programs

0754-scale
Improves production planning

Dew point can predict furnace operational issues enabling operators to plan for preventative maintenance

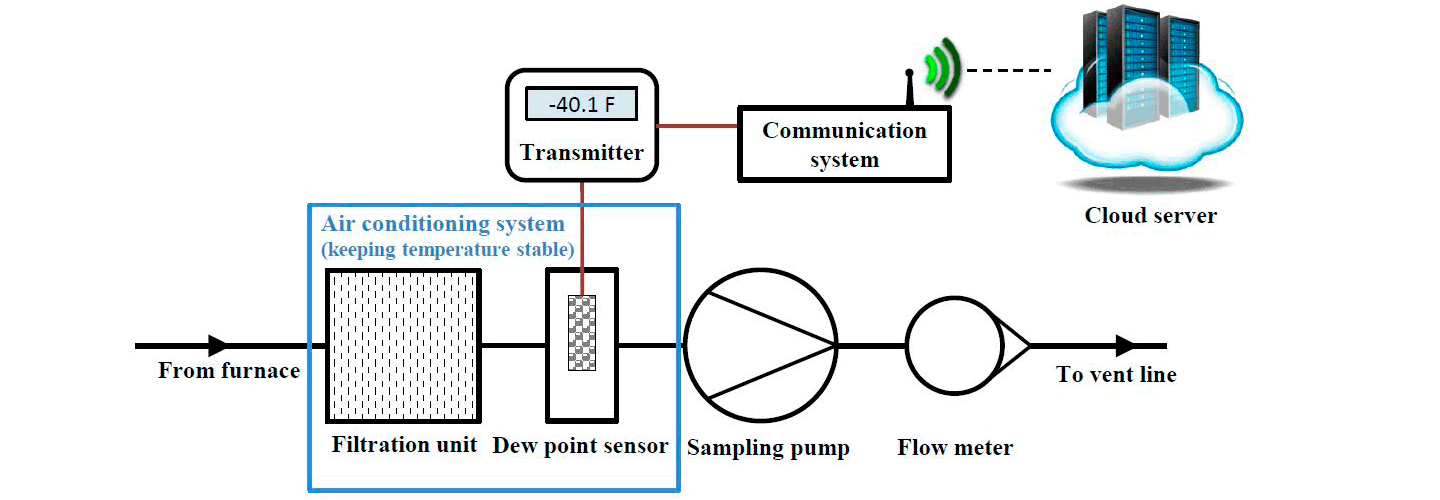

Typical Installation with the Air Products' Dew Point Monitoring System

The Air Products’ dew point monitoring solution enables sampling hot-zone atmosphere using a sampling pump.

Dewpoint Monitor System

Ask the Expert

Don Bowe
Don Bowe

Applications Engineer

Is my dewpointer measuring correctly?

Dew point (DP) is a measure of the moisture composition in a furnace atmosphere. In the various zones of a sintering furnace, the atmosphere can vary widely from a relatively wet, oxidizing atmosphere in the pre-heat zone to a dry, reducing atmosphere in the hot and cooling zones. Maintaining the appropriate atmosphere composition in each zone is critical to achieving the desired delubrication and consistency of the sintered product.

Dew points of –35 to –45°C (–31 to –49°F) are typically desired in the hot zone to ensure carbon control and a good sinter. Continuous monitoring of the dew point in the hot zone can be challenging. Particulate and vapor-phase contaminants in the sample gas stream can potentially accumulate in filtering systems and on sensors. As a result, dew point readings can drift significantly, causing erroneous measurement and necessitating frequent cleaning, recalibration, and sensor replacement. Temperature variations within the sampling unit can also impact the accuracy of the sensors.

These issues can be mitigated by incorporating an automated self-cleaning and sensor calibration process. Temperature control of the sensor and the sampling system are also essential to maintain consistency. This can be achieved via various design features. Drifts and changes in dew point that are reported through local monitoring/alarms or remotely through cloud server access can also help to address furnace operational issues quickly and efficiently.

Continuous dew point monitoring helps manufacturers comply with CQI-9 and NADCAP requirements, and enables operators to plan ahead for shutdowns and preventive maintenance of their furnaces.

Air Products has recently developed a dew point monitoring system to address these issues.

Read more...

Continuous Dew Point Measurements System for a Sintering Furnace

“Customers using our continuous dew point monitoring technology find
that the system enables uninterrupted use, without the need for
calibration or maintenance, and provides alerts on process drifts and
maintenance needs.”

Tom Philips, Applications Engineer
